Particle Engine

     Particle engines are used a lot in 3D applications.  Basically they can be defined by a large array of certain variables.  X, Y, and Z coordinates are required.  Increment variables for the X, Y, Z variables are also required.

Here's a simple example of the particle engine array:

#define MAX_PARTICLES 100   // Number of particles

typedef struct // Create A Structure For Particle
{
  float life;  // Particle Life
  float fade;  // Fade Speed
  float x;  // X Position
  float y;  // Y Position
  float z;  // Z Position
  float xi;  // X Direction
  float yi;  // Y Direction
  float zi;  // Z Direction
}
particles;  // Particles Structure

particles particle[MAX_PARTICLES];  // Particle Array

     Other variables could be put into the array easily, such as Red, Green, and Blue variables.

To initialize the particles, use this code:

int loop;
float V,Angle;

for (loop=0; loop<MAX_PARTICLES; loop++) // Initializes All The Textures
{
  particle[loop].life=1.0f; // Give All The Particles Full Life
  particle[loop].fade=float(rand()%100)/1000.0f+0.05f; // Random Fade Speed

  V = float(rand()%25);  // Speed of the particle
  Angle = float(rand()%360);  // Angle of the particle

  particle[loop].x = 0;  // Set X position
  particle[loop].y = 0;  // Set Y position
  particle[loop].z = 0;  // Set Z position

  particle[loop].xi = sin(Angle) * V;  // Set X velocity
  particle[loop].yi = cos(Angle) * V;  // Set Y velocity
  particle[loop].zi = float
(((rand()%10)-5)/10) * V;  // Set Z velocity
}

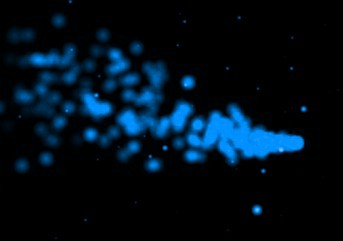

     Finally, to draw the particles and animate them you will probably want to find a texture to use.  I like to use a blurry texture that blends well.  Use this code:

for (loop=0; loop<MAX_PARTICLES; loop++) // Loop Through All The Particles
{

  float x=particle[loop].x; // Grab Our Particle X Position
  float y=particle[loop].y; // Grab Our Particle Y Position
  float z=particle[loop].z; // Grab Our Particle Z Position

  // Draw The Particle Using Our RGB Values, Fade The Particle Based On It's Life
  glColor4f(.5f,.5f,1.f,particle[loop].life);

  glBegin(GL_TRIANGLE_STRIP); // Build Quad From A Triangle Strip
  glTexCoord2f(1,1); glVertex3f(x+0.2f,y+0.2f,z); // Top Right
  glTexCoord2f(0,1); glVertex3f(x-0.2f,y+0.2f,z); // Bottom Right
  glTexCoord2f(1,0); glVertex3f(x+0.2f,y-0.2f,z); // Top Left
  glTexCoord2f(0,0); glVertex3f(x-0.2f,y-0.2f,z); // Bottom Left
  glEnd(); // Done Building Triangle Strip

  particle[loop].x+=particle[loop].xi/250;  // Move On The X Axis By X Speed
  particle[loop].y+=particle[loop].yi/250;  // Move On The Y Axis By Y Speed
  particle[loop].z+=particle[loop].zi/250;  // Move On The Z Axis By Z Speed

// Slow down the particles
  particle[loop].xi*=.975;
  particle[loop].yi*=.975;
  particle[loop].zi*=.975;

  particle[loop].life-=particle[loop].fade; // Reduce Particles Life By 'Fade'

  if (particle[loop].life<0.05f) // If Particle Is Burned Out
  {
    particle[loop].life=1.0f; // Give It New Life
    particle[loop].fade=float(rand()%100)/7500 + 0.0075f; // Random Fade Value
    particle[loop].x= 0; // Center On X Axis
    particle[loop].y= 0; // Center On Y Axis
    particle[loop].z= 0; // Center On Z Axis
    V = (float((rand()%9))+1);
    Angle = float(rand()%360);

    particle[loop].xi = sin(Angle) * V;
    particle[loop].yi = cos(Angle) * V;
    particle[loop].zi = ((rand()%10)-5)/5;
  }
}

    That's pretty much it.  I know that you'll probably have questions even after looking at this.  So I'm giving you a little example program so you can experiment with the engine.  Download it here.  I hope this helps you out. =)
